InLink- Evaluation Board

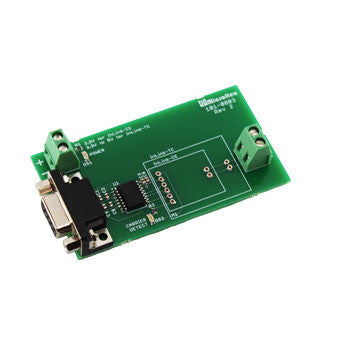

The 101-0003 InLink evaluation board provides product developers the ability to quickly evaluate InLink HART protocol modems.

Socket supports all InLink modules to provides a simple RS-232 to HART interface compatible with most off-the-shelf HART protocol software including PACTware and the Microflex Generic HART DTM.

InLink modem modules are sold separately.

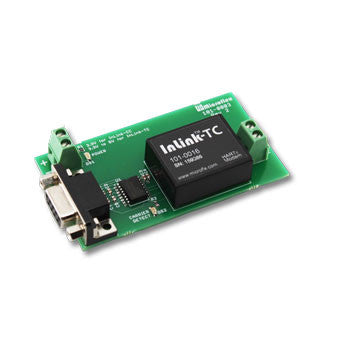

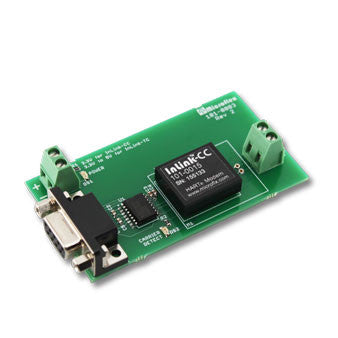

Works with InLink-HM, InLink-CC, and InLink-TC

101-0003 Schematic (PDF)
